Generator Disassembly/Assembly [VIN L (Without Cylinder Deactivation)]: Notes

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Generator Type A

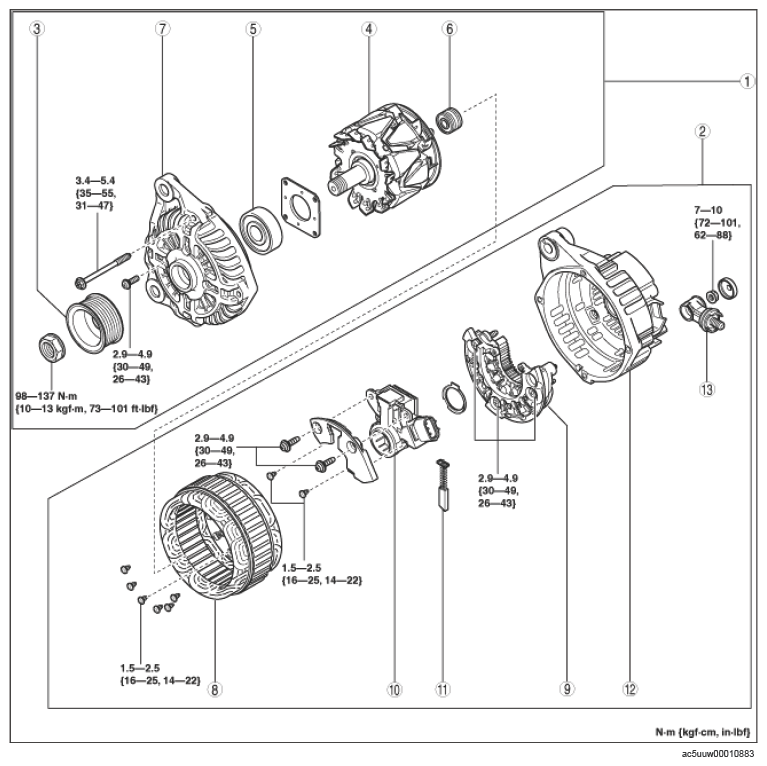

Fig 1: Generator Components Location With Torque Specification (Generator Type A)

Courtesy of MAZDA MOTORS CORP.

Generator Type B

Fig 2: Generator Components Location With Torque Specification (Generator Type B)

Courtesy of MAZDA MOTORS CORP.
