Battery Removal/Installation: Notes

Install in the reverse order of removal.

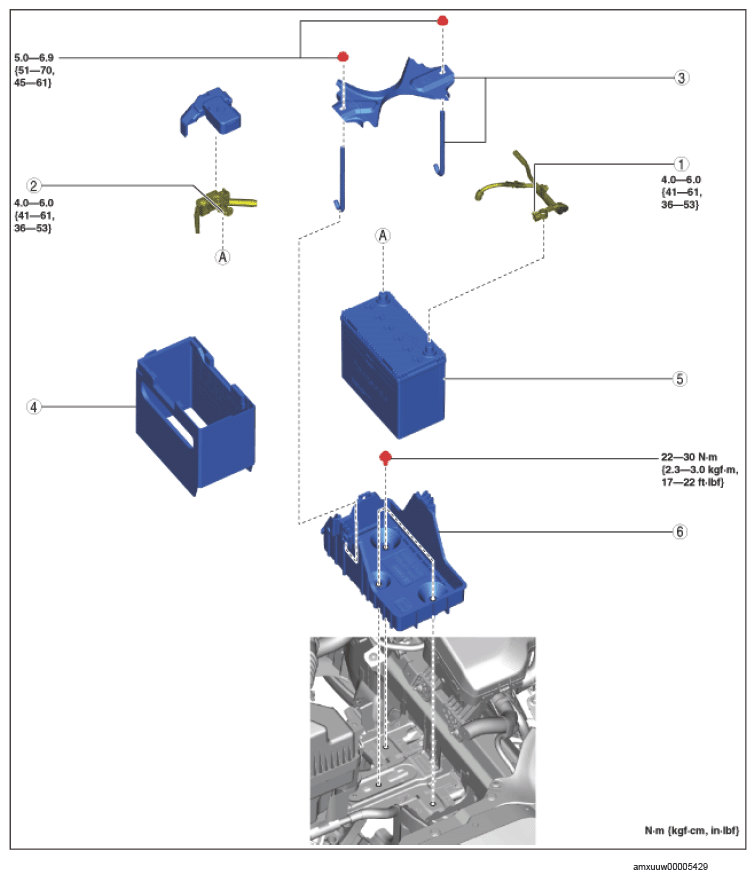

Fig 1: Battery Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component no.	Refer to
1	Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) (See NEGATIVE BATTERY TERMINAL CONNECTION NOTE .)
2	Positive battery terminal
3	Battery clamp (See BATTERY CLAMP INSTALLATION NOTE .)
4	Battery box (See BATTERY BOX INSTALLATION NOTE .)
5	Battery
6	Battery tray (See BATTERY TRAY REMOVAL NOTE .) (See BATTERY TRAY INSTALLATION NOTE .)
