EPS CM Installation Note

Install the EPS CM so that the projecting part of the EPS CM (rotor) is engaged with the notch in the rubber.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- If the projecting part of the EPS CM (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS CM projection (rotor).
Tighten the bolts evenly.

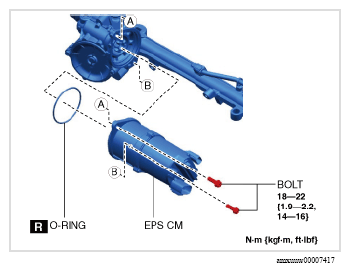

Fig 1: EPS CM, O-Ring And Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
