Telematics communication unit component installation note

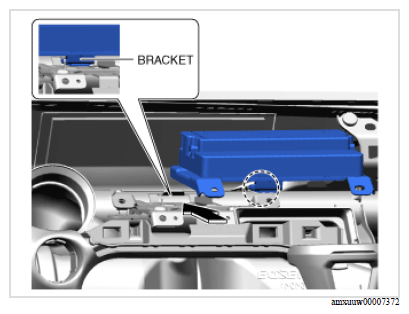

  1. Install the telematics communication unit component to the position shown in the figure.
    G16810313Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If the wiring harness gets caught between the parts, it may be damaged. To prevent this, secure the wiring harness to the bracket.

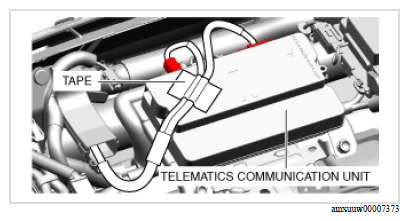

  2. Secure the wiring harness with tape to the position shown in the figure.
    G16810314Courtesy of MAZDA MOTORS CORP.
