DSC-Track Switch Inspection
NOTE:
- The DSC-TRACK switch is integrated with the cluster switch.
- If the DSC-TRACK switch is replaced, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
- Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

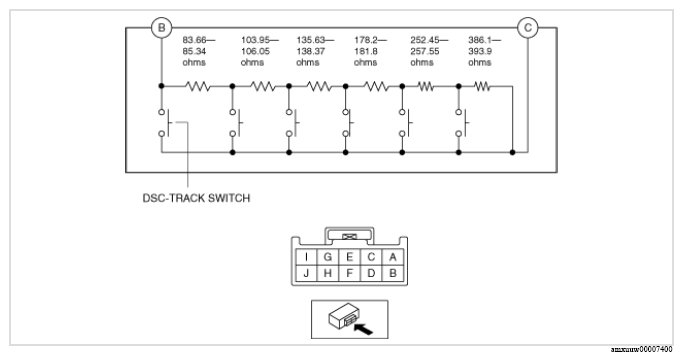

- Measure the resistance between cluster switches B and C under the following conditions:
- If not within the specification, replace the cluster switch.
Resistance with DSC-TRACK switch pressed and held (standard)
- 0 ohm
Resistance with any switches not pressed (standard)
- 1, 139.99-1, 163.01 ohms
