Rear console removal note

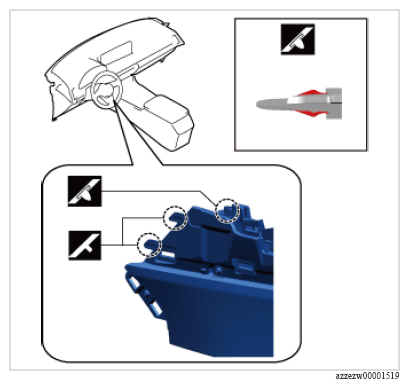

  1. Remove the rear console as shown in the figure.
    • The figure shows the left side (same as right side).
    G16708893Courtesy of MAZDA MOTORS CORP.
