Remove Driver Side Front Splash Shield No. 2: Notes

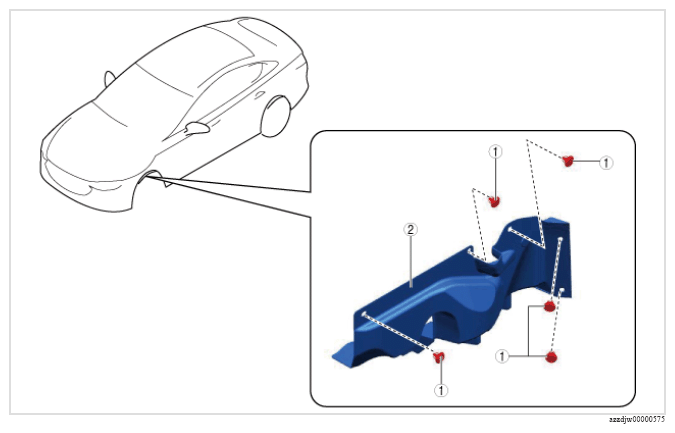

  1. Remove using the procedure shown in the figure.
    • The figure shows the left side (same as right side).
    G16707940Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Fasteners
    2 Front splash shield No. 2
    (See Front splash shield No. 2 removal note .)
