Remove Connector Cover

  1. Remove in the order indicated in the table.

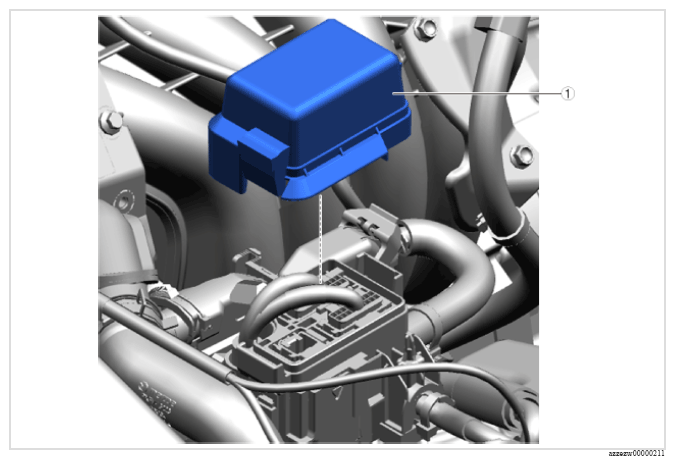

    G16707937Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Connector cover
