Perform Precaution After Service

WARNING:

Fuel is highly flammable and dangerous. Fuel line spills and leakage can cause serious injury or death, and damage to equipment. In addition, fuel can also irritate skin and eyes. To prevent this, perform the following inspections with the engine stopped.
A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before servicing the fuel system, make sure to discharge static electricity by touching a vehicle.

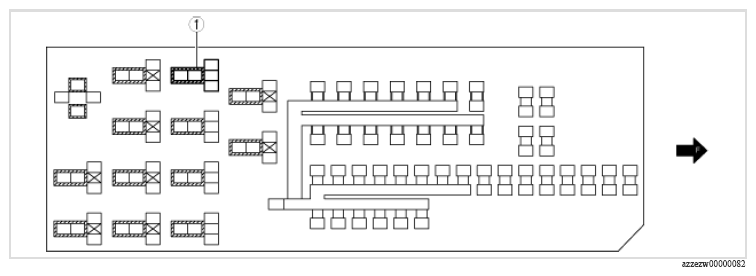

Remove the fuel pump relay.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No.	Refer to
1	Fuel pump relay

CAUTION:

Shorting the wrong terminal in the relay and fuse block may cause malfunctions. Always short only the specified terminal.

Short fuel pump relay terminal C and terminal D in the relay and fuse block using a jumper wire.

Courtesy of MAZDA MOTORS CORP.
Connect the negative lead-acid battery terminal and operate the fuel pump.
Verify that there is no fuel leakage at the serviced location.
Standard

No leakage after 5 min have elapsed
If there is fuel leakage, replace the following parts and perform the [AFTER SERVICE PRECAUTION] again.
- If there is fuel leakage, replace the fuel hoses and clips.
- If the sealing surface on the fuel pipe side is scratched, replace the fuel pipe.
