Remove Rear Toe Control Link (Driver's Side): Notes

NOTE:

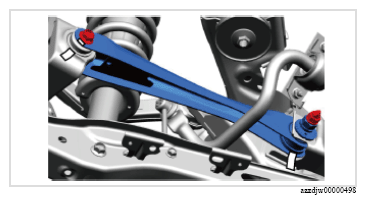

• Before removing the rear toe control link, jack up the vehicle to the unloaded position and place alignment marks at the positions shown in the figure (same as passenger's side).

Courtesy of MAZDA MOTORS CORP.

1. Remove using the procedure shown in the figure.
   • The figure shows the driver's side (same as passenger's side).

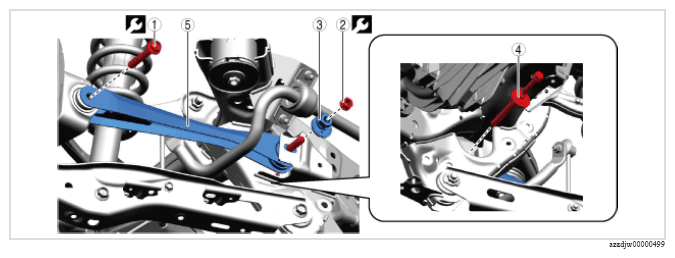

   Fig 1: Rear Toe Control Link Bolt And Nut With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
   TIGHTENING TORQUE SPECIFICATIONS



   Step	Part name
   1	Bolt	162 N.m {16.5 kgf.m, 119.35 ft.lbf}}
   2	Nut	131.5 N.m {13.4 kgf.m, 96.9 ft.lbf}
   3	Cam plate (See CAM PLATE INSTALLATION NOTE )	-
   4	Adjusting cam bolt (See ADJUSTING CAM BOLT INSTALLATION NOTE )	-
   5	Rear toe control link (See REAR TOE CONTROL LINK INSTALLATION NOTE )	-
