Remove Protector

Remove using the procedure shown in the figure.

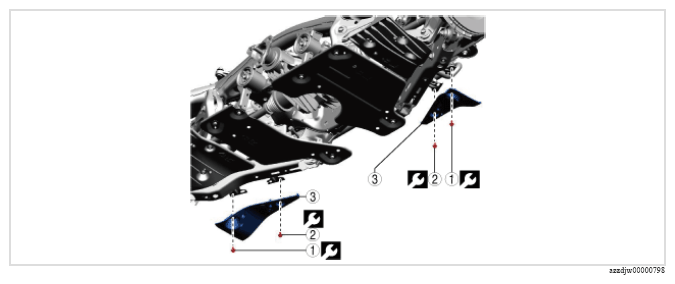

Fig 1: Protector Bolt With Torque Specifications

G16708311

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Bolt	9.5 N.m {95 kgf.cm, 82 in.lbf}
2	Bolt	9.5 N.m {95 kgf.cm, 82 in.lbf}
3	Protector	-
