Remove Member Bracket Cover

  1. Remove using the procedure shown in the figure.

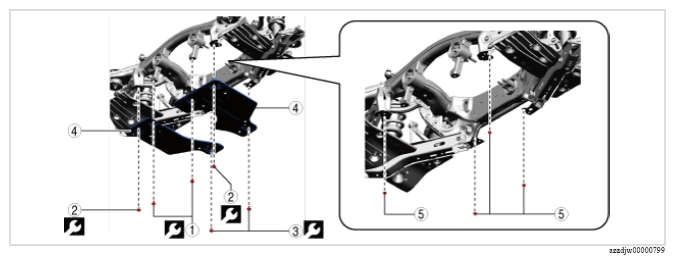

    Fig 1: Member Bracket Cover Bolt With Torque Specifications
    G16708313Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Step Part name
    1 Bolt 45.5 N.m {4.65 kgf.m, 33.5 ft.lbf}
    2 Bolt 45.5 N.m {4.65 kgf.m, 33.5 ft.lbf}
    3 Bolt 45.5 N.m {4.65 kgf.m, 33.5 ft.lbf}
    4 Member bracket cover -
    5 Fastener -
