Inspect Rear Stabilizer Control Link

NOTE:

Perform the procedure with the rear stabilizer control link removed. (See REAR STABILIZER REMOVAL ). (See REAR STABILIZER INSTALLATION ).

Inspect the rear stabilizer control link for bending or damage.
- If there is any malfunction, replace the rear stabilizer control link. (See REAR STABILIZER REMOVAL ). (See REAR STABILIZER INSTALLATION ).
Rotate and shake the rear stabilizer control ball stud 10 times.

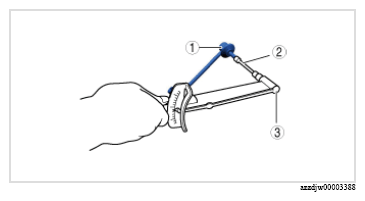

Measure the rear stabilizer control link ball joint rotational torque using a hexagon wrench and a torque wrench.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component No	Refer to
1	Rear stabilizer control link
2	Hexagon Wrench
3	Torque wrench
