Remove Trunk End Trim: Notes

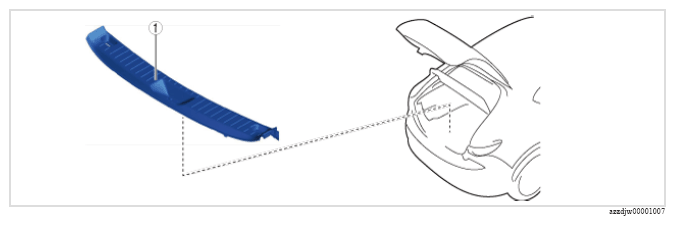

  1. Remove using the procedure shown in the figure.
    G16708276Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Trunk end trim
    (See Trunk end trim removal note ).
