Upper column cover removal note

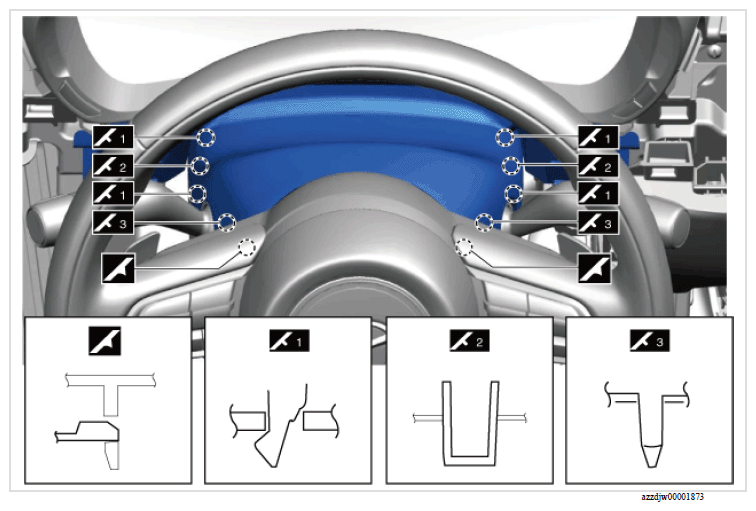

  1. Detach the upper column cover from the lower column cover as shown in the figure.
    G16712223Courtesy of MAZDA MOTORS CORP.

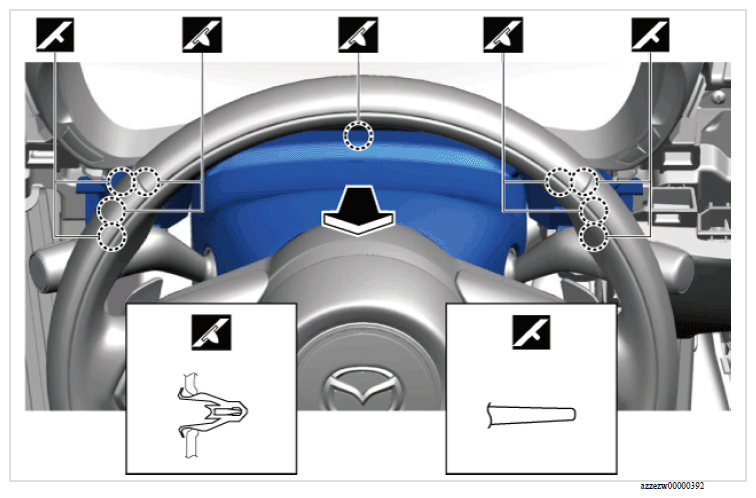

  2. Remove the upper column cover as shown in the figure.
G16712224Courtesy of MAZDA MOTORS CORP.
