Remove Electric Tilt/Telescopic Switch

1. Remove using the procedure shown in the figure.

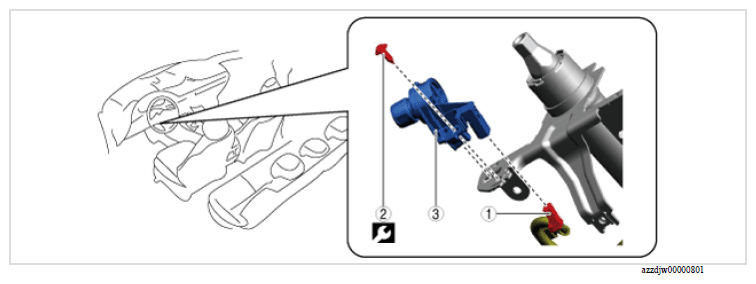

Fig 1: Electric Tilt/Telescopic Switch Screw With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Connector	-
2	Screw	2.5 N.m {25 kgf.cm, 22 in.lbf}
3	Electric tilt/telescopic switch	-
