Steering Wheel Bezel Removal/Installation: Notes

D-code

• 32983
  1. Remove the cover assembly. (right side) (See COWL GRILLE REMOVAL/INSTALLATION .)
  2. Disconnect the negative lead-acid battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the driver side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION .)

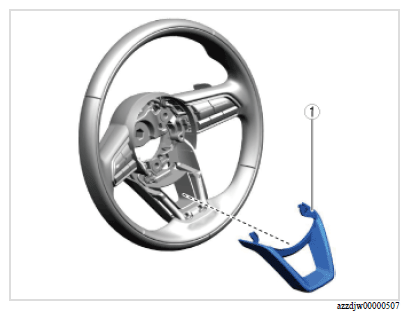

  4. Remove using the procedure shown in the figure.

     Courtesy of MAZDA MOTORS CORP.

     PART NAME DESCRIPTION



     Procedure	Part name	Applicable condition
     1	Steering wheel bezel (See STEERING WHEEL BEZEL INSTALLATION NOTE )	Continuous

  5. Install in the reverse order of removal.
