Terminal disconnection inspection method
CAUTION:
- Verify that there is no disconnection from terminals to prevent poor contact with the terminal.
- Inspect the connectors while connected for terminals which may be sticking out from the wiring harness side.

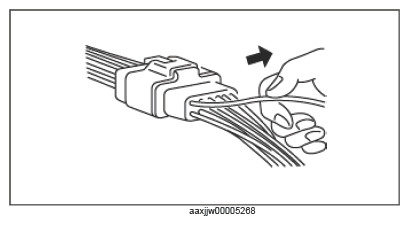

- Inspect the terminals to verify that terminals do not pull out of the connectors when each wiring harness is pulled lightly one by one.
