Control module connector

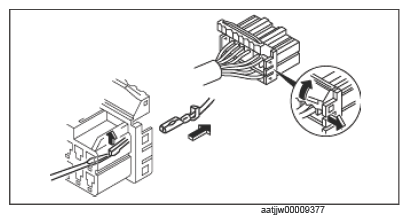

  1. Release the rear cover.
  2. Insert a flathead screwdriver and pull out the wiring harness with the stopper pressed up.
G15738266Courtesy of MAZDA MOTORS CORP.
