Light Switch Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  4. Remove the lower column cover. (See LOWER COLUMN COVER REMOVAL/INSTALLATION .)
  5. Remove the clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
  6. Remove the Wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)

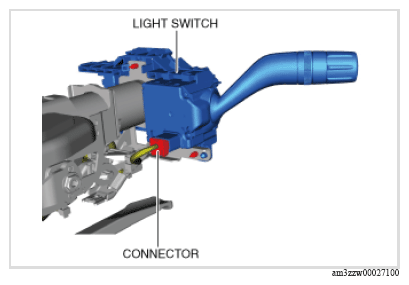

  7. Disconnect the connectors.
    G16377070Courtesy of MAZDA MOTORS CORP.

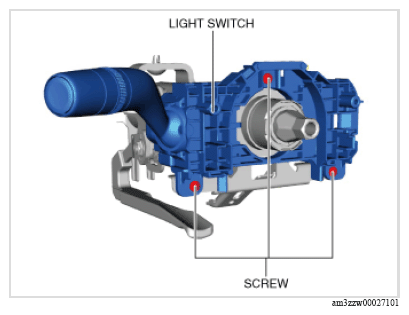

  8. Remove the screws.
    G16377071Courtesy of MAZDA MOTORS CORP.

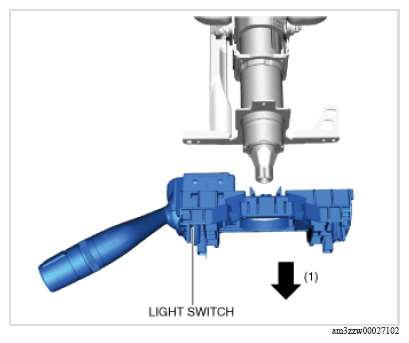

  9. While pull out the combination light in the direction of arrow (1) shown in the figure.
    G16377072Courtesy of MAZDA MOTORS CORP.
  10. Remove the light switch.
  11. Install in the reverse order of removal.
