Bolt Installation Note

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

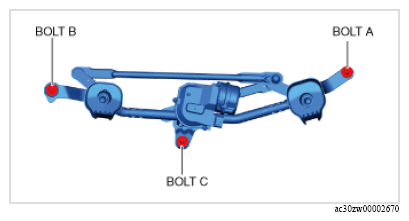

  1. Temporarily tighten bolt A.
    G16377189Courtesy of MAZDA MOTORS CORP.
  2. Completely tighten bolt B.
  3. Completely tighten bolt A.
  4. Completely tighten bolt C.
