Rear Door Glass Run-Channel Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Power window subswitch (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
3. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
5. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
6. Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)

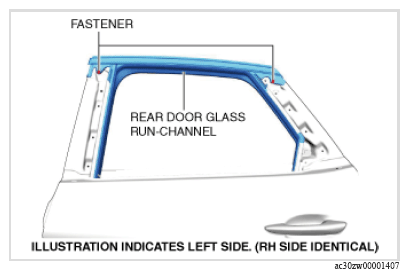

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.
Partially peel back the rear door glass run-channel.

Courtesy of MAZDA MOTORS CORP.

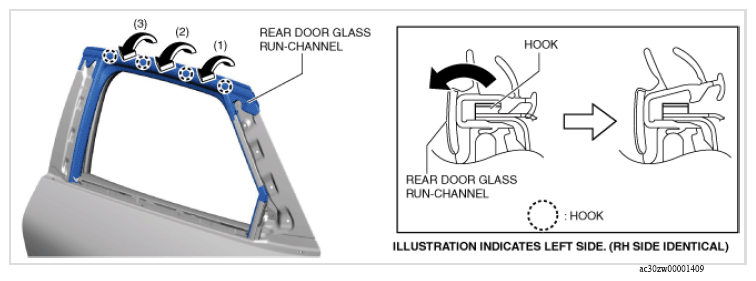

Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure and remove it from the rear door hooks.

Courtesy of MAZDA MOTORS CORP.

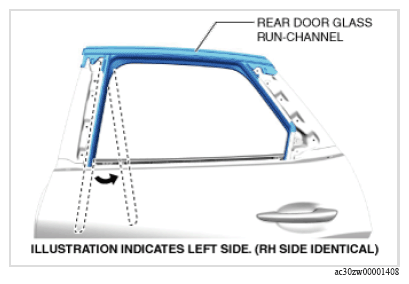

Remove the rear door glass run-channel.
Install in the reverse order of removal.
