Power Liftgate (PLG) Touch Sensor Inspection
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

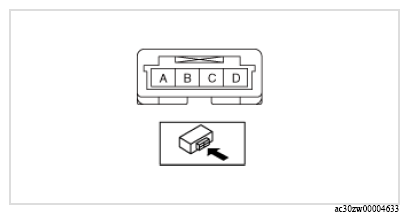

- Disconnect the power liftgate (PLG) touch sensor connector. (See POWER LIFTGATE (PLG) TOUCH SENSOR REMOVAL/INSTALLATION .)

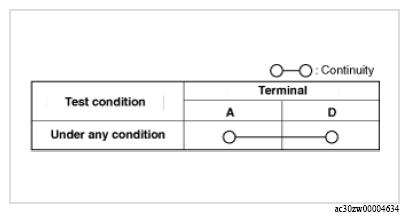

- Verify that the continuity between the power liftgate touch sensor terminals is as indicated in the table.
- If not as indicated in the table, replace the power liftgate touch sensor. (See POWER LIFTGATE (PLG) TOUCH SENSOR REMOVAL/INSTALLATION .)
