Front Stabilizer Bracket Removal Note

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the front stabilizer bracket cannot be removed by hand, remove it using a vise.

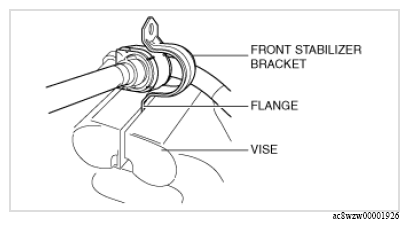

    G16373116Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • The front stabilizer bracket may deform if it is removed using a vise. When removing the front stabilizer bracket using a vise, secure the front stabilizer bracket flange to the vise as shown in the figure, then remove it.
