Front Shock Absorber And Coil Spring Removal/Installation: Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Secure the steering knuckle in a vise.

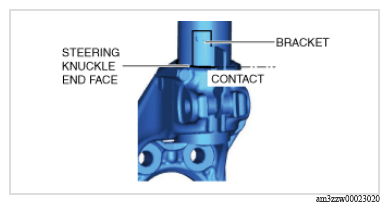

Insert the front shock absorber and coil spring into the steering knuckle so that the front shock absorber bracket is contacted with the end face of the steering knuckle.

Courtesy of MAZDA MOTORS CORP.
Remove the SST.

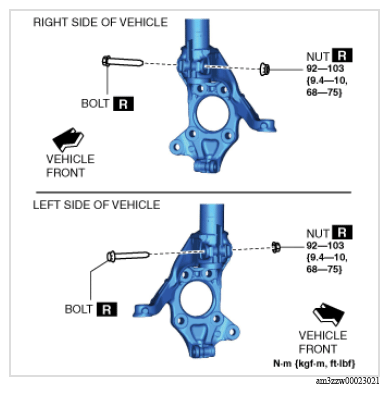

Install a new bolt and nut in the direction shown below and tighten them to the specified torque.

Fig 1: Front Shock Absorber Bolt And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
- Right side of vehicle: Insert bolt from front of vehicle
- Left side of vehicle: Insert bolt from rear of vehicle
Install the front shock absorber and steering knuckle component. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION .)
If the front shock absorber and coil spring is replaced, inspect the wheel alignment and if necessary make adjustments. (See FRONT WHEEL ALIGNMENT .)
