Mounting Rubber Installation Note

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mounting rubber so that the mounting rubber stud and the front shock absorber bracket are in position A shown in the figure.

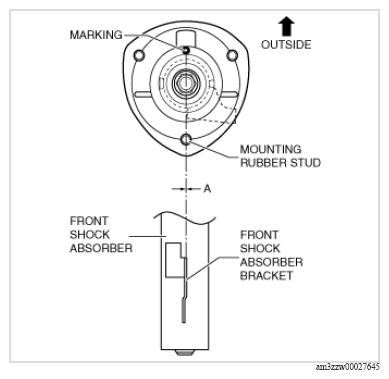

    G16373094Courtesy of MAZDA MOTORS CORP.

    A: 0°±5°

    NOTE:
    • Assemble the mounting rubber so that the marking faces the outside of the vehicle.
