Front Lower Arm Inspection
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Special service tool (SST)
| 49 FT01 389 Preload adapter |
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
- Inspect the following items. If there is any malfunction, replace the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
- Bending or damage of front lower arm
- Excessive play of front lower arm ball joint
- Crack in dust boot of ball joint
- Deformation of dust cover plate
- Replace the SST securing bolt with a bolt of a suitable length.

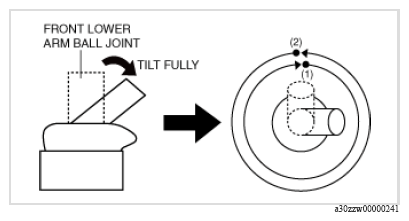

- Rotate the front lower arm ball joint in the order of arrows (1) and (2) shown in the figure.
- Repeat Step 6 four times.

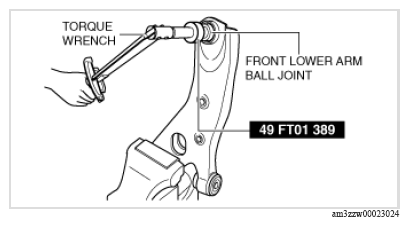

- Measure the front lower arm ball joint initial torque and rotational torque using the SST and a torque wrench.
Front lower arm ball joint stud starting torque
17 N.m {1.7 kgf.m, 13 ft.lbf} or less
Front lower arm ball joint stud rotational torque
3.2 N.m {33 kgf.cm, 28 in.lbf} or less
- If not within the standard, replace the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
