Liftgate Latch And Lock Actuator Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Door lock switch (liftgate) (with advanced keyless entry system)/Power liftgate (PLG) rear switch (with power liftgate) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

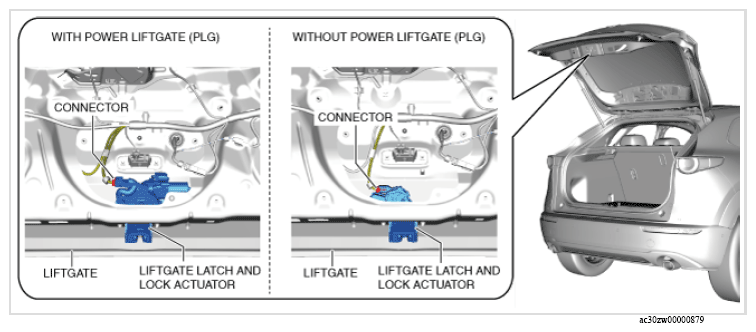

  3. Disconnect the connector.
    G16376560Courtesy of MAZDA MOTORS CORP.

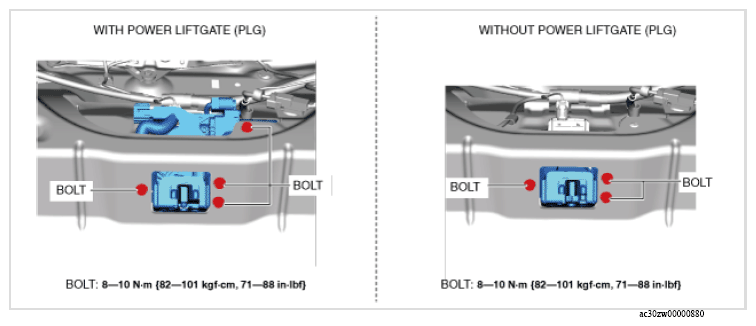

  4. Remove the bolts.
    Fig 1: Liftgate Latch And Lock Actuator Bolts With Torque Specification
    G16376561Courtesy of MAZDA MOTORS CORP.

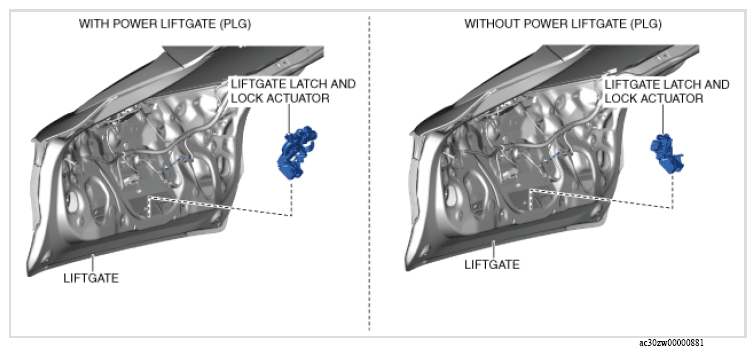

  5. Remove the liftgate latch and lock actuator from the liftgate.
    G16376562Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
