Ring Gear Assembly Note

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

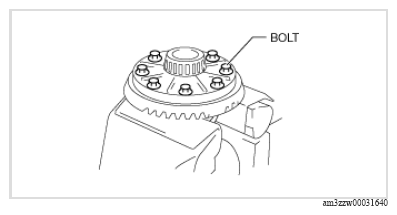

  1. Align the marks placed on the ring gear case at the time of disassembly and tighten the bolts in diagonal order.
G16374070Courtesy of MAZDA MOTORS CORP.
