Ring Gear Assembly Note
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

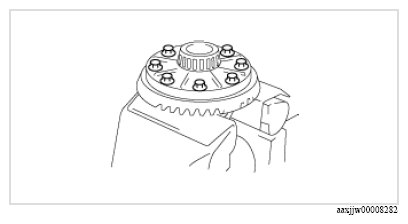

- Align the marks placed on the ring gear case at the time of disassembly and tighten the bolts in diagonal order.
 Courtesy of MAZDA MOTORS CORP.
|
Tightening torque
69-83 N.m {7.1-8.4 kgf.m, 51-61 ft.lbf}
