Rear Cover Assembly Note

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the alignment surface of the carrier and rear cove.

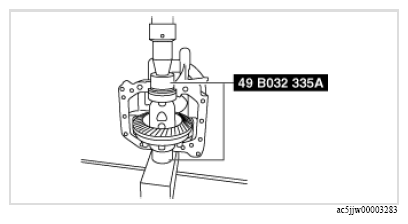

  2. Apply pressure to the case using a press and install the rear cover using the SSTs (49 B032 335A) as shown in the figure.
    G13111760Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not apply pressure of 2 t or more.
  3. Install the bolts with the specified torque as shown in the figure below.

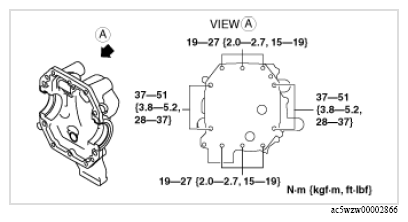

Fig 1: Rear Cover Assembly Bolts With Torque Specification
G13111761Courtesy of MAZDA MOTORS CORP.
