Power Liftgate (PLG) Front Switch Inspection
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- For the power liftgate (PLG) front switch removal/installation, refer to the cluster switch removal/installation. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

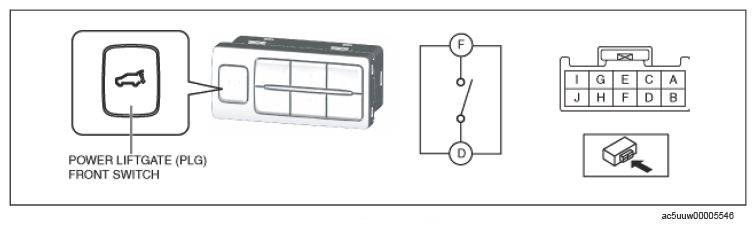

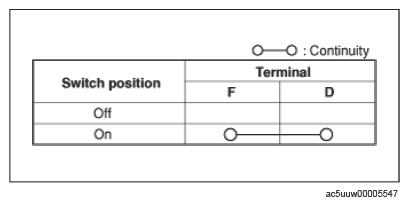

- Verify that the continuity between the power liftgate (PLG) front switch terminals is as indicated in the table.
- If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
