Grommet Installation Note

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the grommet using the following procedure.

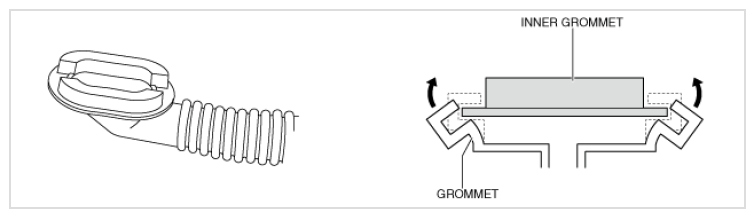

Install the grommet to the inner grommet.

G16332940

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Install the grommet so that there is no gap between the grommet and the inner grommet. Otherwise, it may cause water leakage.

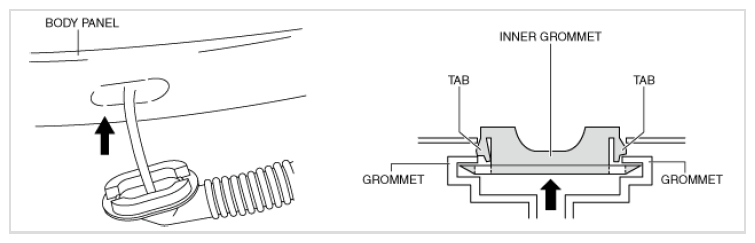

Move the inner grommet in the directions of the arrows shown in the figure below and engage the tabs of the inner grommet with the body panel side.

G16332941

Courtesy of MAZDA MOTORS CORP.

CAUTION:

After installing the grommet, shake the inner grommet to verify that the tabs are securely engaged.
