Sunroof Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

Courtesy of MAZDA MOTORS CORP.

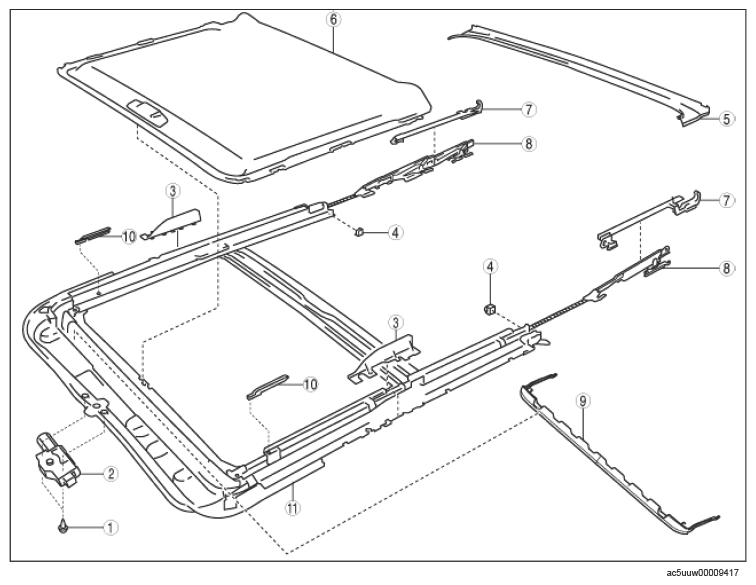

SUNROOF UNIT COMPONENT OPERATIONS

Component no	Refer to
1	Screw
2	Sunroof motor
3	Screen
4	Rear stopper
5	Drip rail
6	Sunshade (See Sunshade Disassembly Note .)
7	Front guide (See FRONT GUIDE DISASSEMBLY NOTE .)
8	Decoration link
9	Deflector
10	Set plate
11	Sunroof frame

Assemble in the reverse order of disassembly.
