Weatherstrip Installation Note

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

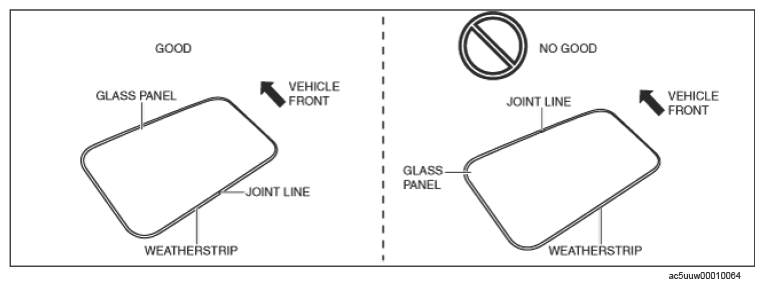

Install the weatherstrip to the glass panel with the joint part of the weatherstrip assembled to the vehicle rear side.

Courtesy of MAZDA MOTORS CORP.
