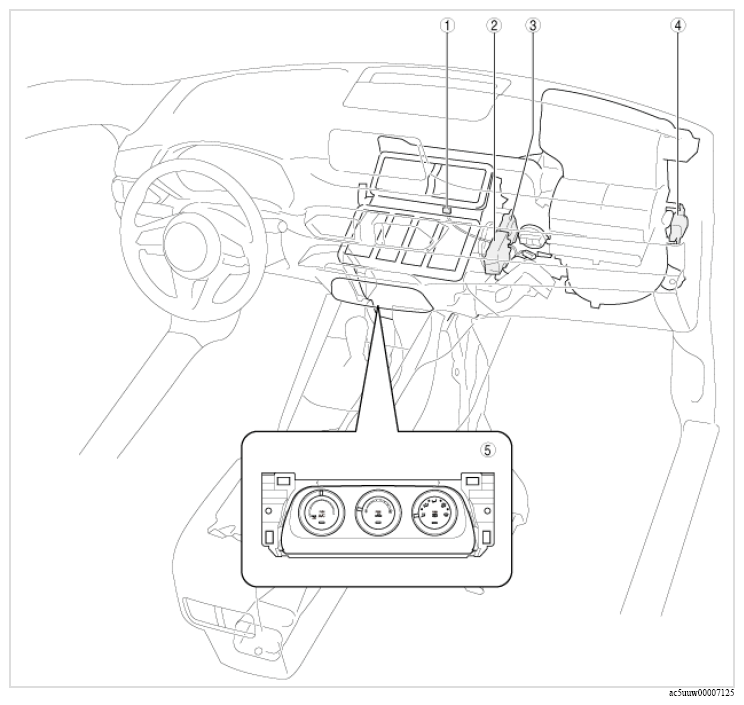

Structural View (1)
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
HVAC CONTROL SYSTEM COMPONENT OPERATIONS
| Component no. | Refer to |
|---|---|
| 1 | Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] ) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 2 | Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL [MANUAL AIR CONDITIONER] .) (See AIRFLOW MODE ACTUATOR INSTALLATION [MANUAL AIR CONDITIONER] .) (See AIRFLOW MODE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 3 | Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See AIR MIX ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 4 | Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .) |
| 5 | Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER] .) |
