Front Center Speaker Removal/Installation
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)

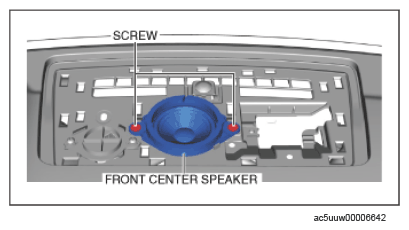

- Remove the screws.
- Remove the front center speaker.
- Disconnect the front center speaker connector.
- Install in the reverse order of removal.
