Front Deflector
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

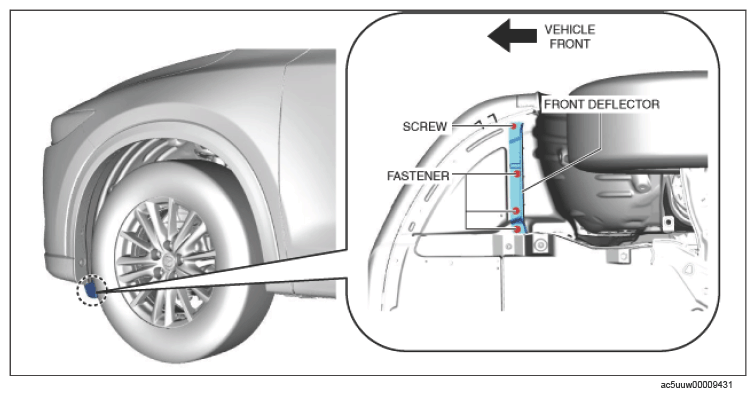

- Remove the screw.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the fasteners.

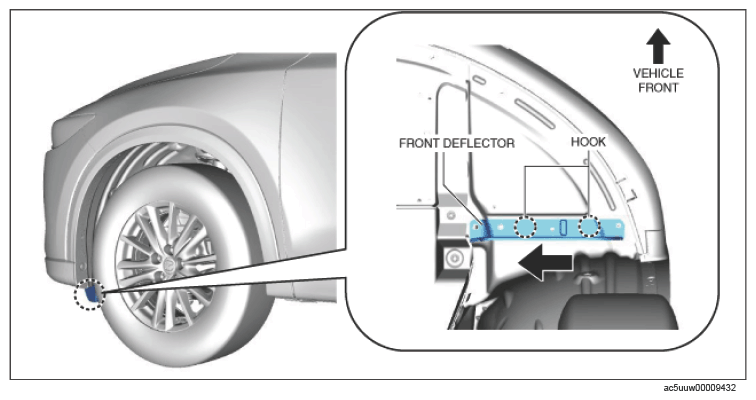

- Pull the front deflector in the direction of the arrow shown in the figure below and remove it while detaching the hooks.
 Courtesy of MAZDA MOTORS CORP.
|
- Install in the reverse order of removal.
