Lower Panel Removal/Installation: Driver-Side
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
- Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
- Partially peel back the seaming welt.

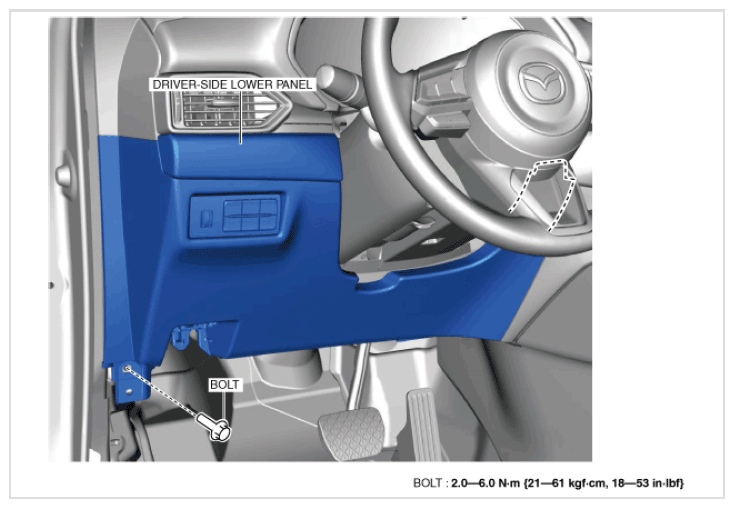

- Remove the bolt.

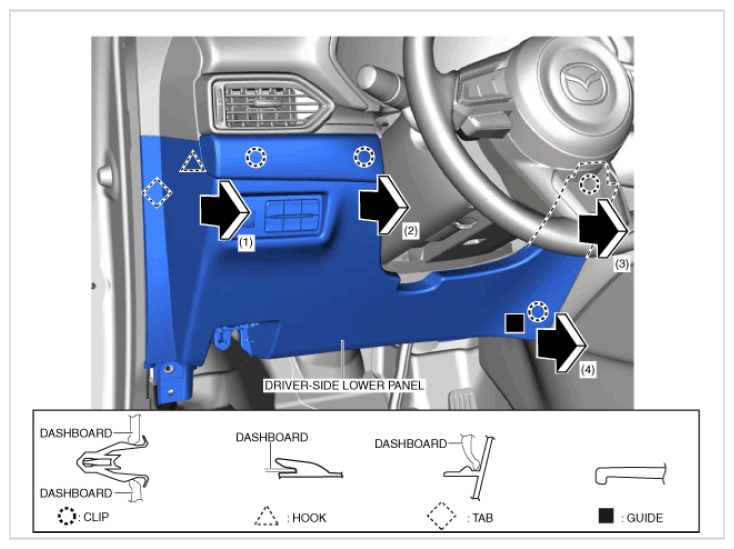

- Pull the driver-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and remove it while detaching the clips, hook, tab, and guide.

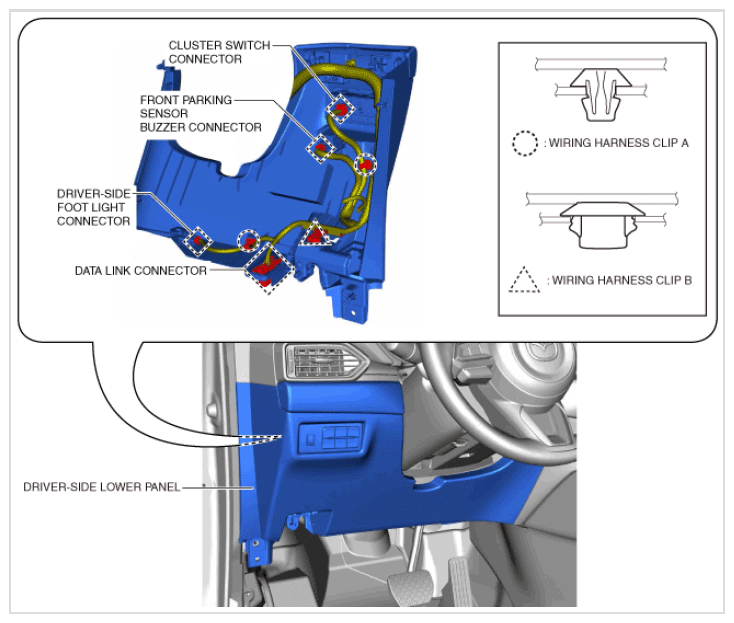

- Disconnect the cluster switch connector.
- Remove the data link connector.
- Disconnect the front parking sensor buzzer connector. (with front parking sensor)
- Disconnect the driver-side foot light connector. (with driver-side foot light)
- Remove wiring harness clips A and B.NOTE:
- When replacing the driver-side lower panel, remove the following parts:
- Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
- Driver-side foot light (with foot light) (See FOOT LIGHT REMOVAL/INSTALLATION .)
- Front parking sensor buzzer (with parking sensor system) (See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION .)
- When replacing the driver-side lower panel, remove the following parts:
- Install in the reverse order of removal.
