Liftgate Side Trim Removal/Installation

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

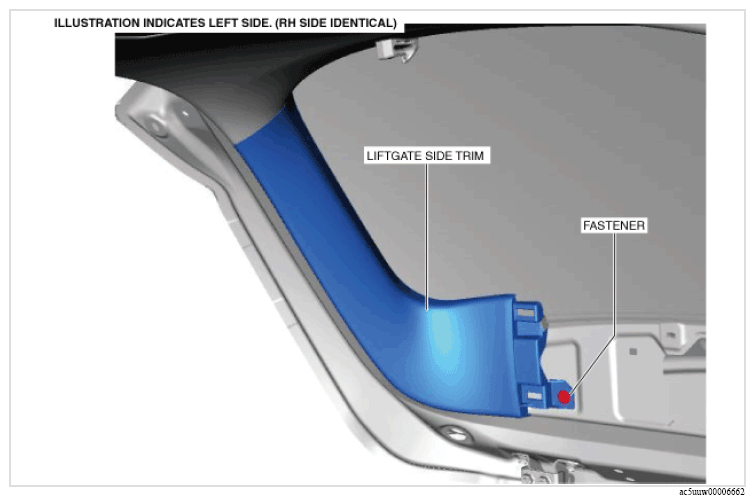

  2. Remove the fastener.
    G13114993Courtesy of MAZDA MOTORS CORP.

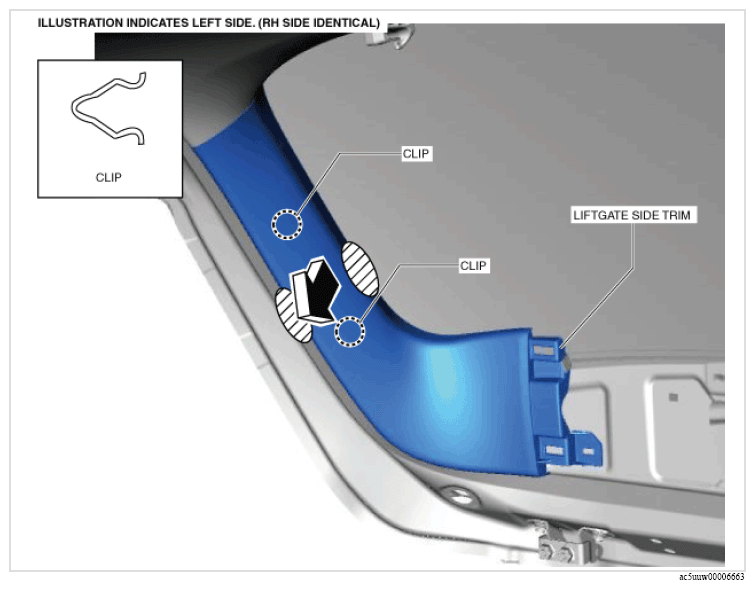

  3. Hold the shaded areas shown in the figure and detach the clips while moving the liftgate side trim in the direction of the arrow.
    G13114994Courtesy of MAZDA MOTORS CORP.

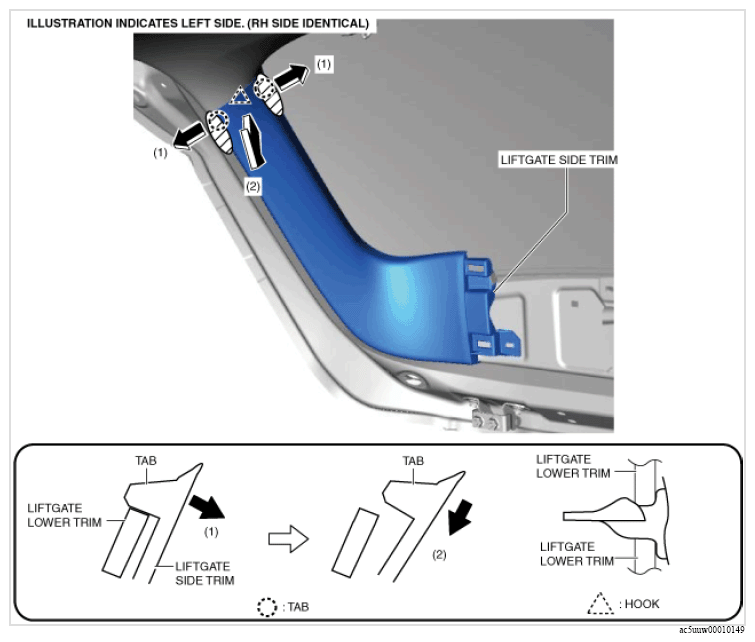

  4. Hold the shaded areas shown in the figure and partially peel back the edge of the liftgate side trim in the direction of arrows (1) to detach the tabs, move the liftgate side trim in the direction of arrow (2) with the tabs detached and remove the liftgate side trim while detaching the hook.
    G13114995Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
