Liftgate Recess Removal/Installation

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

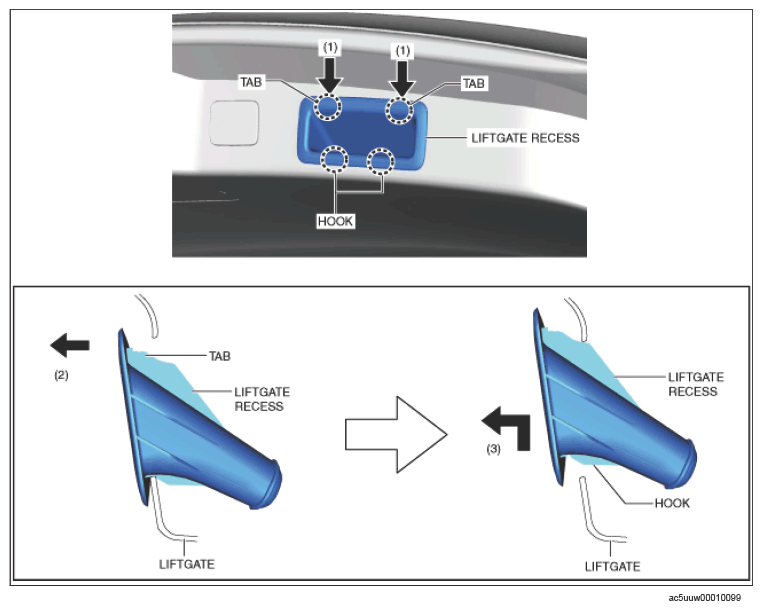

  1. While pressing the liftgate recess in the direction of arrows (1) shown in the figure, move the liftgate recess in the direction of arrow (2), and detach the liftgate recess tabs.
    G15642661Courtesy of MAZDA MOTORS CORP.
  2. Remove the liftgate recess in the direction of arrow (3) shown in the figure while detaching the hooks of the liftgate recess.
  3. Install in the reverse order of removal.
