Foot Support Removal/Installation

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
Partially peel back the floor covering.

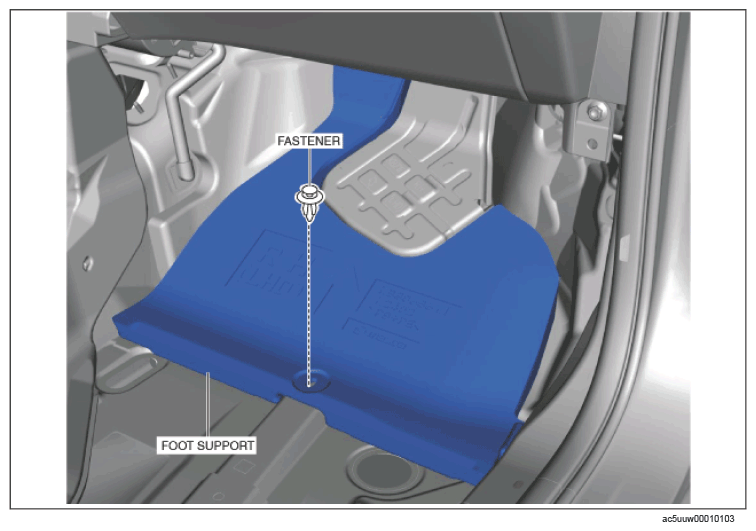

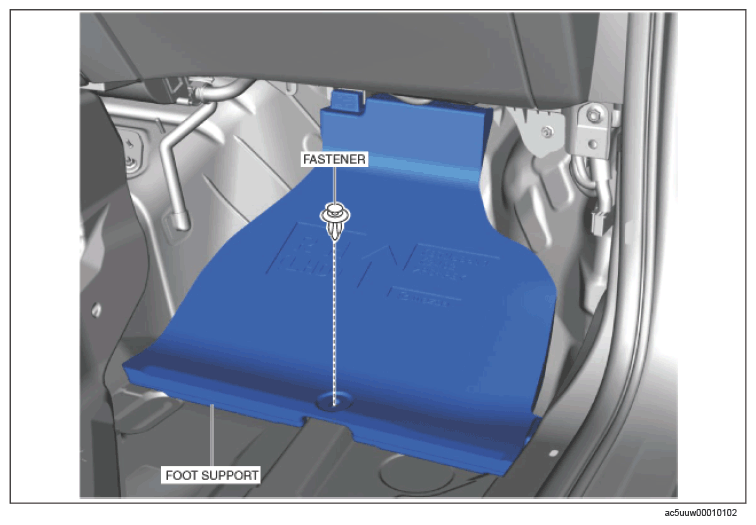

Remove the fastener.
Without 360° view monitor control module

Courtesy of MAZDA MOTORS CORP.

With 360° view monitor control module

Courtesy of MAZDA MOTORS CORP.

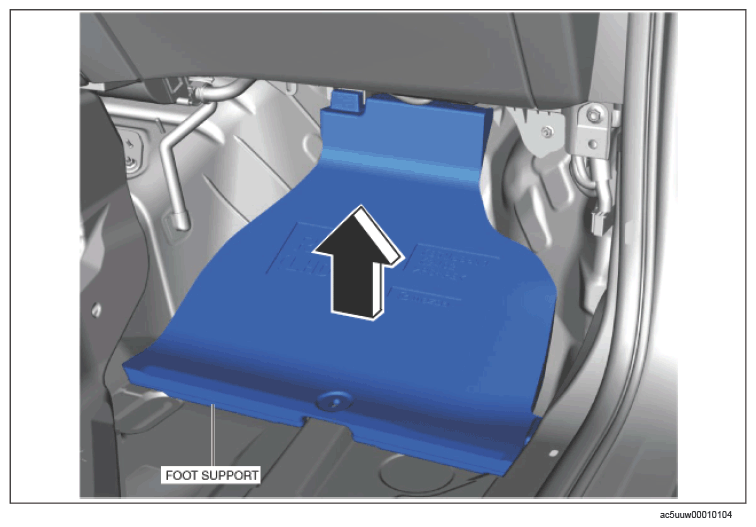

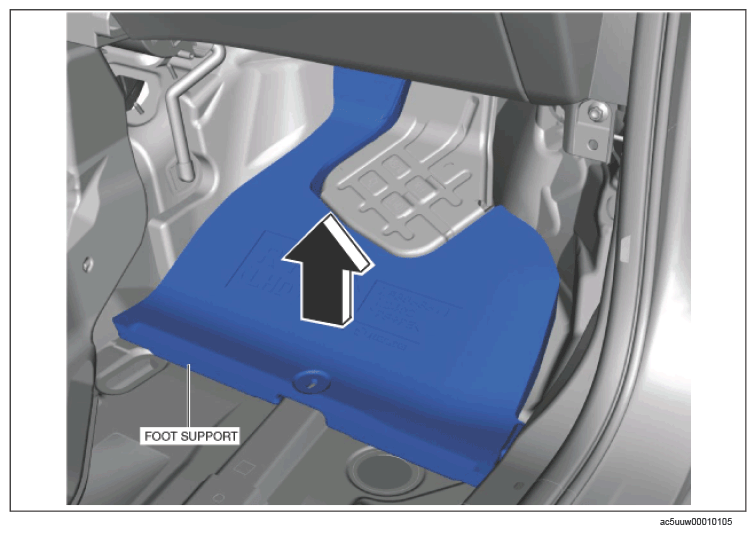

Remove the foot support in the direction of the arrow shown in the figure.
Without 360° view monitor control module

Courtesy of MAZDA MOTORS CORP.

With 360° view monitor control module

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
