Rear Combination Light Short-Cord Removal/Installation
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts.
- Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
- Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
- Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
- Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

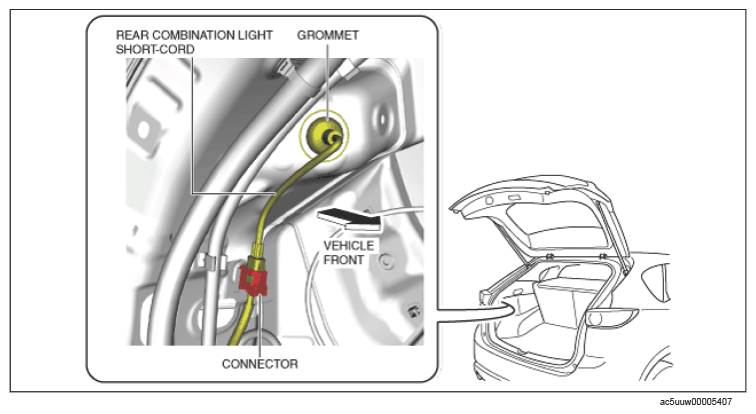

- Disconnect the connector.
- Press the grommet to the outside from inside the body and remove the rear combination light short-cord.
- Install in the reverse order of removal.
