Console Ambient Light (With Down Light)
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)

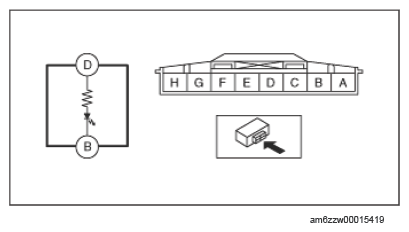

- Apply battery voltage to front map light terminal D, and connect terminal B to ground.
- Verify that the LED turns on.
- If the LED does not turn on, replace the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
