Foot Light Removal/Installation: Rear

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)

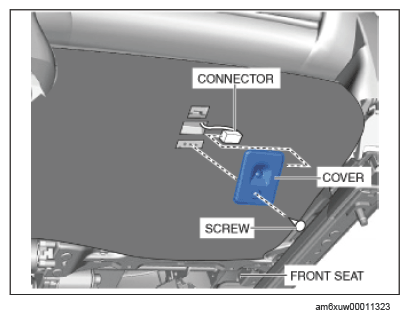

  3. Remove the screw.
    G15677572Courtesy of MAZDA MOTORS CORP.
  4. Remove the cover.
  5. Disconnect the connector.

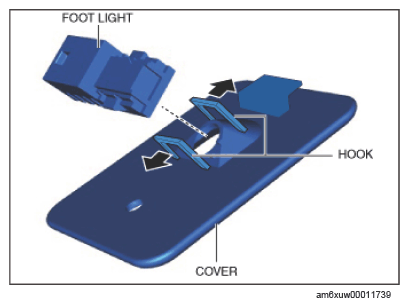

  6. While pressing hooks in the direction of arrow shown in the figure below and remove the foot light from the cover.
    G15677573Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
