Charging System Location Index (VIN M)
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CHARGING SYSTEM COMPONENT OPERATIONS

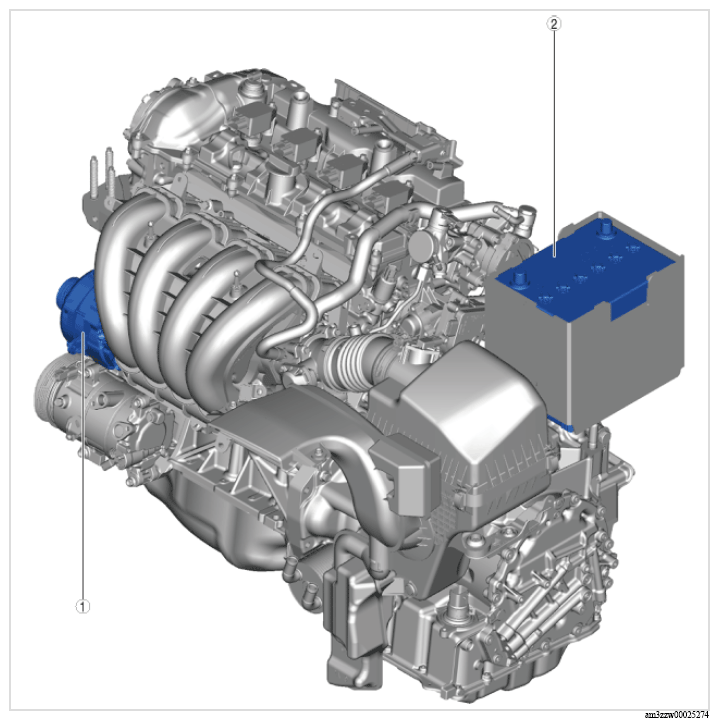

| Component No. | Refer to |
|---|---|
| 1 | Generator (See GENERATOR REMOVAL/INSTALLATION (VIN M) .) (See GENERATOR INSPECTION (VIN M) .) (See GENERATOR DISASSEMBLY/ASSEMBLY (VIN M) .) |
| 2 | Battery (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) (See BATTERY REMOVAL/INSTALLATION (VIN M) .) (See BATTERY INSPECTION .) (See BATTERY RECHARGING .) |
