Transfer Removal/Installation [GW6AX-El]: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

REPLACEMENT PART DESCRIPTION

Oil seal
Quantity: 1
Location of use: Transfer oil seal (RH) No. 1

Oil seal
Quantity: 1
Location of use: Transfer oil seal (RH) No. 3

CAUTION:

Performing the following procedures could cause an open circuit in the front ABS wheel speed-sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
Remove the heat shield.

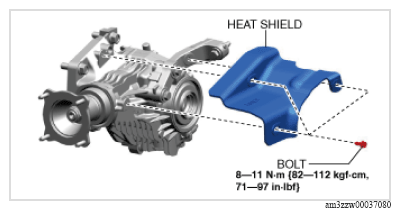

Fig 1: Heat Shield And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the transfer bracket. (See TRANSFER BRACKET INSTALLATION NOTE .)

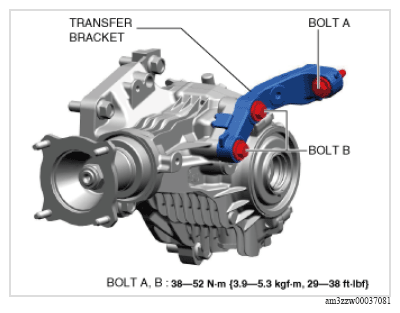

Fig 2: Transfer Bracket And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Drain the transfer oil. (See TRANSFER OIL REPLACEMENT [GW6AX-EL] .)
Remove in the order shown in the figure.
Install in the reverse order of removal.
After the engine and transaxle warms up, inspect for oil leakage and transfer operation.

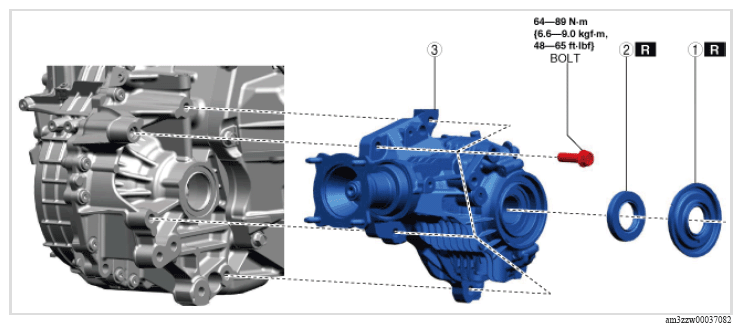

Fig 3: Transfer Components Location With Torque Specification (GW6AX-EL)

Courtesy of MAZDA MOTORS CORP.

TRANSFER COMPONENT OPERATION

Component no.	Refer to
1	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
2	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [GW6AX-EL] .)
3	Transfer

Replacement Part
