Front Splash Shield

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle.
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION .)

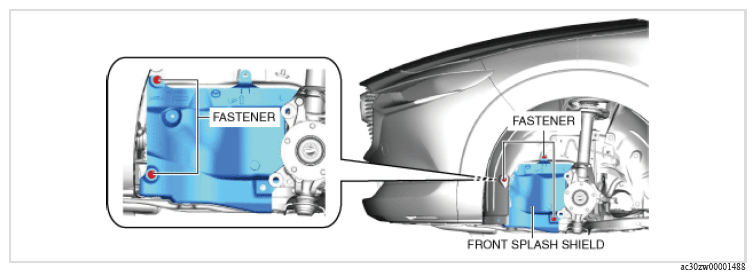

  4. Remove the fasteners.
    G16376779Courtesy of MAZDA MOTORS CORP.
  5. Remove the front splash shield.
  6. Install in the reverse order of removal.
