Sunroof Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

Courtesy of MAZDA MOTORS CORP.

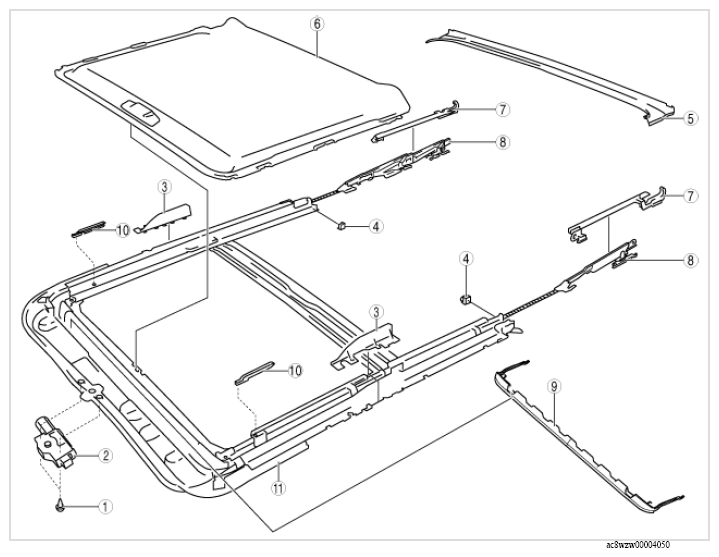

SUNROOF UNIT COMPONENT OPERATION

Component No.	Refer to
1	Screw
2	Sunroof motor
3	Screen
4	Rear stopper
5	Drip rail
6	Sunshade (See SUNSHADE DISASSEMBLY NOTE .)
7	Decoration link (See DECORATION LINK ASSEMBLY NOTE .)
8	Front guide (See FRONT GUIDE DISASSEMBLY NOTE .)
9	Deflector
10	Set plate
11	Sunroof frame

Assemble in the reverse order of disassembly.
