Console side panel removal note

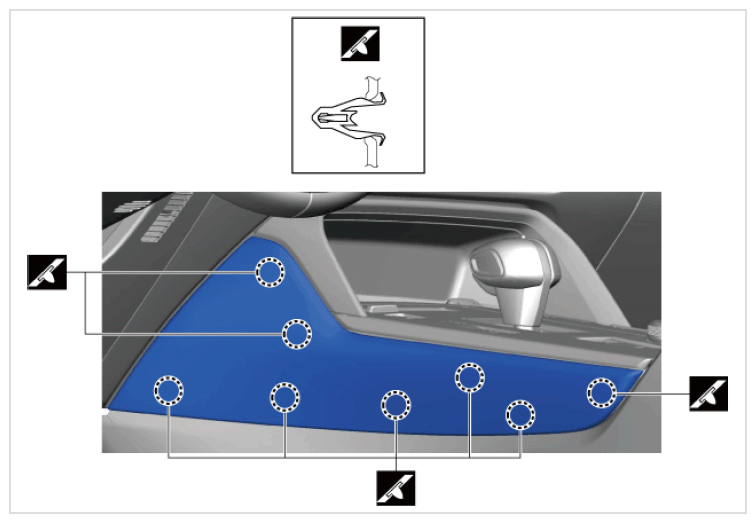

  1. Remove the console side panel as shown in the figure below.
    • the figure below shows the left side (same as right side).
G16706889Courtesy of MAZDA MOTORS CORP.
